System components

Max reduced

The GMS® MAX system uses only a few basic elements. This offers several advantages:

  • Low cost
  • Flexible, yet sturdy
  • Easier installation
  • Reduced transportation costs
GMS® MAX system components

Main components

  1. Post
  2. Head
  3. Long beam
  4. Module carrier; different profiles for S and L versions

Accessories

  • Adjustment rockers
  • End caps for long beams and module carriers
  • Cable channels light / edge clips / cable clamps
  • Middle clamps with earthing pins, bridging straps
  • Theft preventions
  • Mounting brackets for inverter
  • Inverter roofings
  • Cable protections for posts and DC/AC combiner boxes

Gallery

GMS® MAX head
GMS® MAX module carrier profile
Module edge with end clamps
Transition into the accumulator

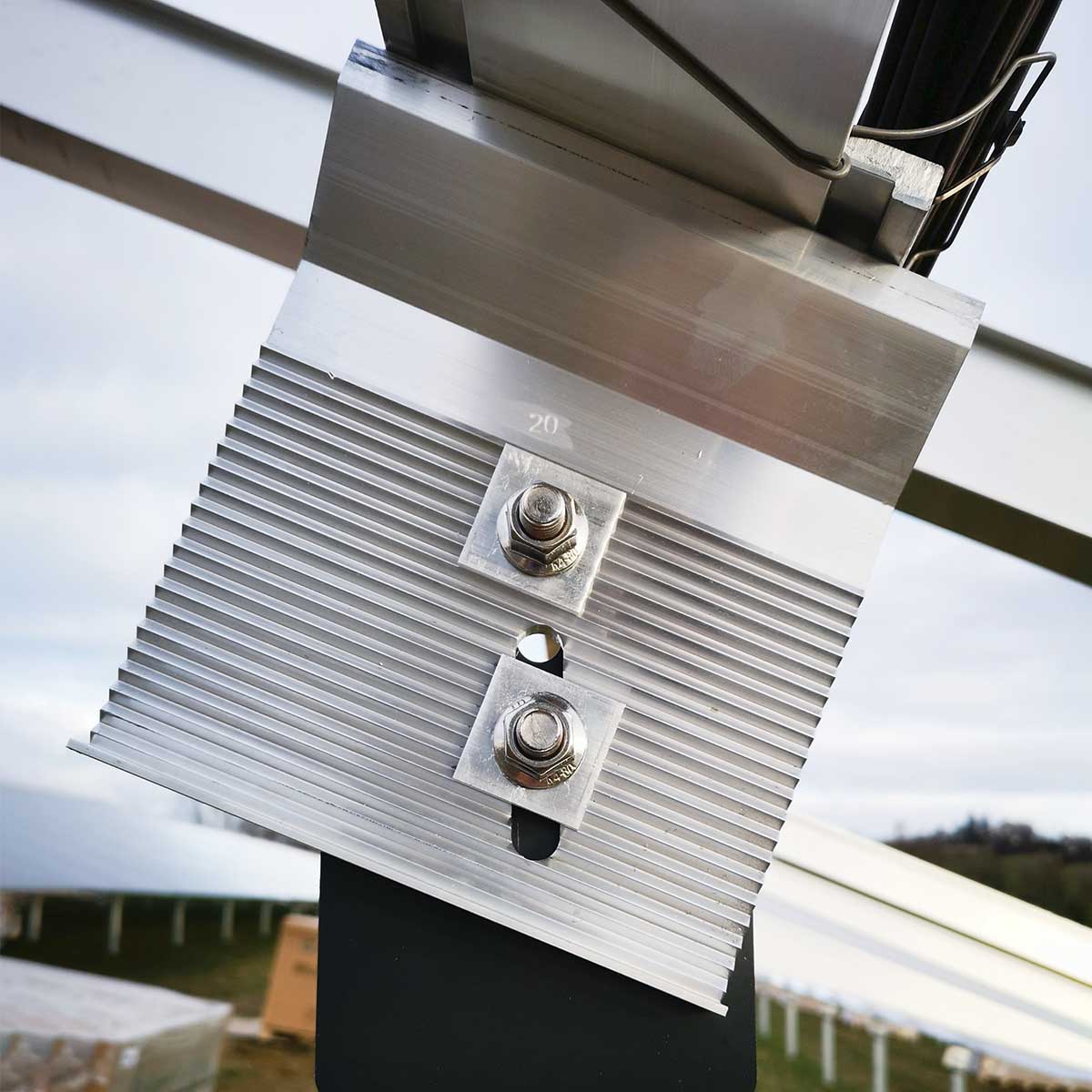

Adjustment rocker for compensating lateral inclinations
Cable trays along the long beam for clipping (“cable channel light”)
Cable clamps for module cables
Middle clamp with earthing pins
Bridging strap for potential equalisation / lighting protection
Theft prevention: aluminium balls to cover the screw head
End caps for long beams and module carriers
Standardised fastening materials for accumulator and inverter
